MV Secure Drive Mini Rugged IP67
(4CH / 5CH)
Mini-sized yet powerful vehicle telematics system. Featuring IP67 waterproofing, robust anti-vibration chassis, and high-performance 4G/5G remote surveillance.
Ruggedness at the Core
Miniaturized, sealed, and heavy-duty. The is engineered to endure where standard electronics fail.
IP67 Certified All-Weather Seal
The is encased in a premium sealed aluminum housing. Fully protected against dust ingress and continuous water immersion up to 1 meter, it is the prime choice for open-cabin industrial applications.
Ultra-Compact Hand-Size
Measuring only 38 * 146 * 155 mm. Fits perfectly into the most space-restricted vehicle cabins and dashboards.
Extreme Temp Resilience
Operates reliably from freezing -40°C to scorching +80°C suitable for open mining sites or cold storage operations.
Military Shockproof
Vibration and impact-proof design certified to military standards, keeping files secure during harsh gravel or off-road runs.
Edge AI Copilot
Direct connection to ADAS/DSM/BSD cameras for active driver assistance and collision avoidance in industrial zones.
MV Secure Drive Mini Rugged IP67 Description
The is an AI MDVR that is mini-sized yet exceptionally powerful. Key characteristics include:
- Waterproof & Dustproof: IP67 certified design, making it highly resilient for tough field applications.
- Hand-size Dimension: Extremely compact footprint at 38 * 146 * 155 mm for tight vehicle cabins.
- Mighty Features: Direct support for AI modules (ADAS, DSM, BSD) to greatly reduce fleet accident rates.
- Multiple Scenarios: Excellent deployment for taxis, law enforcement, fire trucks, marine vessels, mining vehicles, and forklifts.
This MDVR with remote viewing capabilities utilizes 4G/5G cellular data networks and Wi-Fi hotspots, via a SIM card and Ethernet connections for remote monitoring of live audio, real-time video, and recorded telemetry logs.

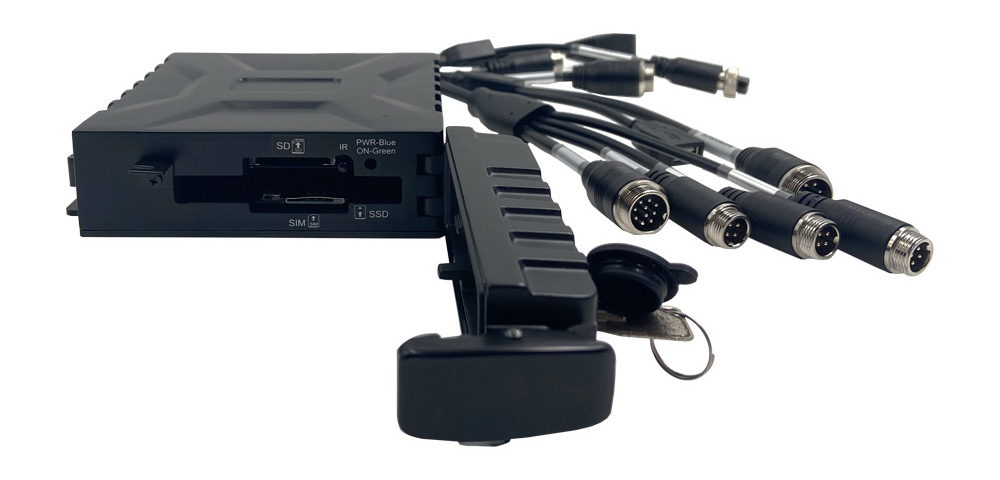

Rear Panel Interfaces

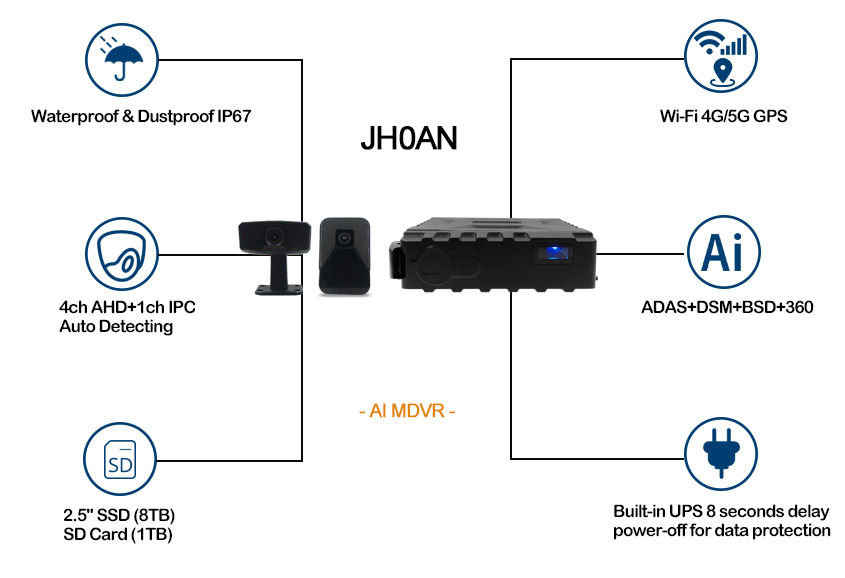

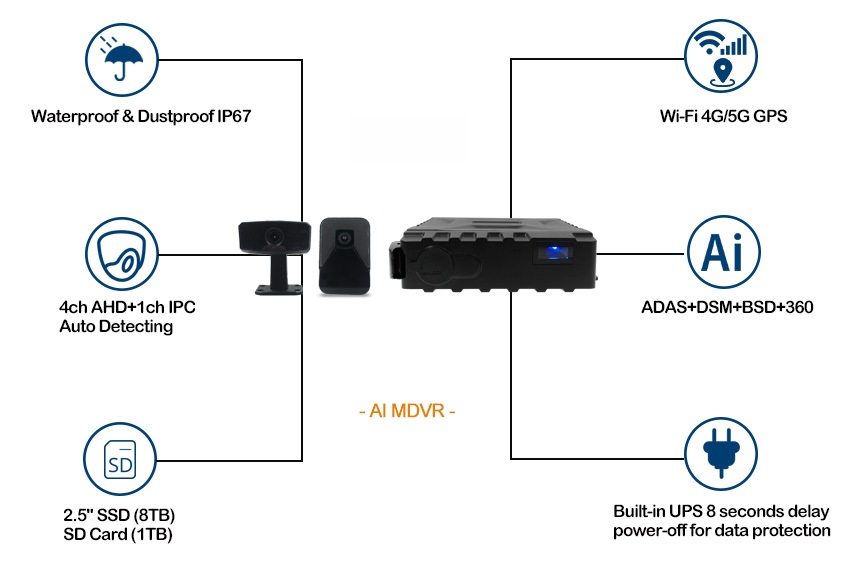

Full Product Features
- done Waterproof & Dustproof IP67 rated enclosure
- done Hand-size Dimension: 38 * 146 * 155 mm
- done Model 4CH: Up to 4 channels A/V recording (4 x 1080P AHD)
- done Model 5CH: Up to 5 channels A/V recording (5 x 1080P AHD)
- done Hybrid storage: 1 x SSD (up to 8TB) + 1 x SD card (up to 1TB)
- done Support AI functions ADAS / DSM / BSD / 360 Around View optional
- done Internal 6-axis G-sensor and gyroscope for harsh driving alarms and crash impact logs
- done Built-in UPS delay power-off protection for data integrity
- done 8V~36V wide voltage power supply input range
AI Function of Waterproof NVR
- ADAS: Advanced Driver-Assistance Systems
- DSM: Driver Status Monitoring
- BSD: Blind Spot Detection
- 360 AVM: 360 Around View System (optional)
Features
Architecture
Why do we require Secure Drive' MV Secure Drive Mini Rugged IP67?
Have these questions ever caused you distress?
- help_outline Where can you find the ideal solution for managing your fleet?
- help_outline How can anomalies in individuals, vehicles, and road conditions be monitored?
- help_outline How can evidence be quickly supplied in case of an accident or theft?
Featuring algorithms such as ADAS, DSM, and BSD, this MDVR is built to deliver trustworthy vehicle management solutions for diverse vehicle types, including taxis, law enforcement vehicles, fire trucks, ships, mining trucks, and forklifts. It ensures customer safety while significantly boosting operational efficiency.

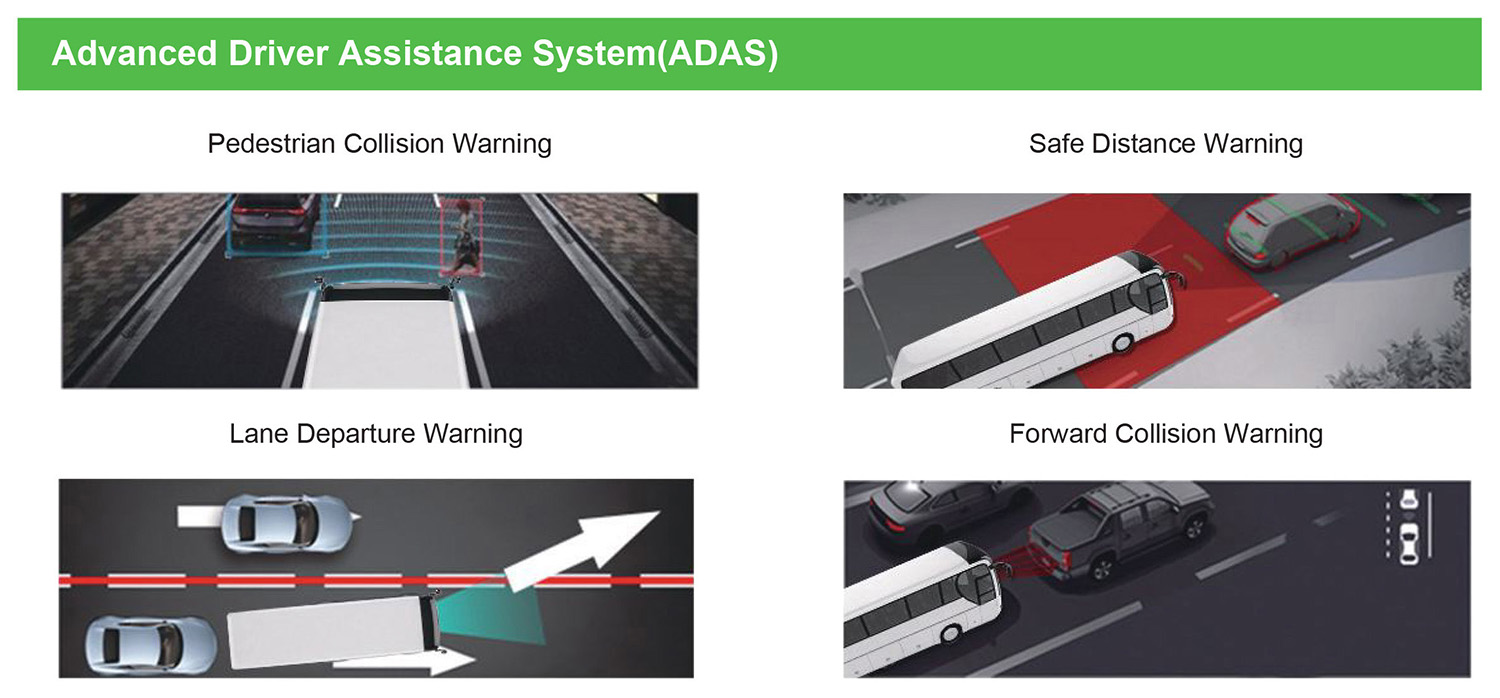

1. ADAS (Advanced Driver Assistance System)
Forward-looking ADAS camera monitors forward collision risk, tailgating warnings, and lane departures. The system alerts drivers in real time through acoustic audible alarms to prompt corrective actions.

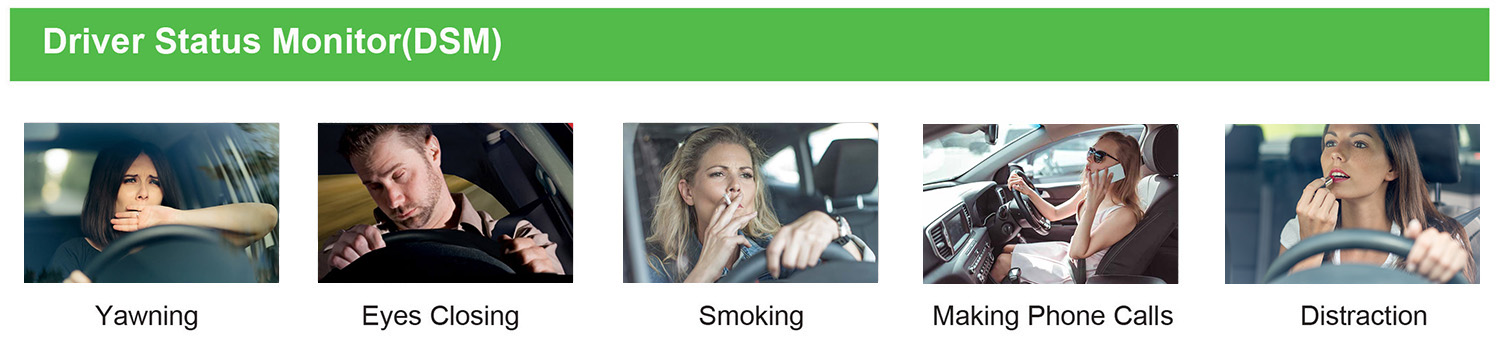

2. DSM (Driver Status Monitoring)
Internal-view camera alerts against driver fatigue, distraction, smoking, and phone calls. Live alerts and videos are uploaded to the IVMS software, establishing a proactive loop to minimize accident probabilities.

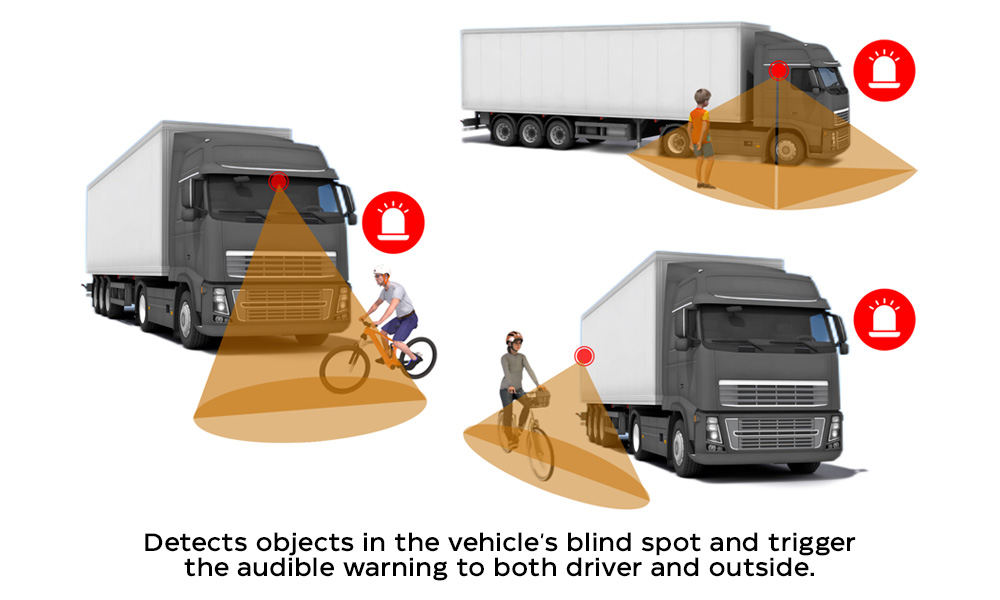

3. BSD (Blind Spot Detection)
Blind spot monitoring camera monitors threat risks in the front and right blind spots, analyzing alarms across three warning levels to protect pedestrians and cyclists.

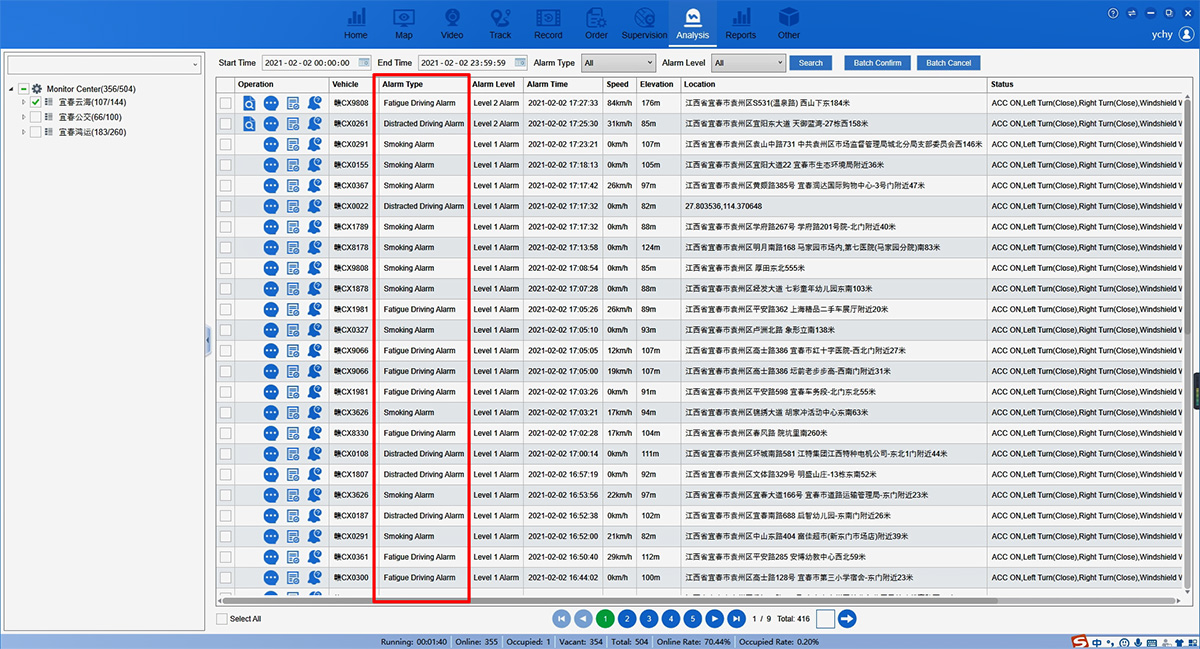

4. IVMS Software Platform
When warning events trigger, pictures/videos are directly uploaded to the cloud platform via the device, allowing managers to view them remotely, analyze telemetry data, and maximize fleet efficiency.
Integrated Mobile Solutions
Accessories of MV Secure Drive Mini Rugged IP67
Supports optional fleet peripherals, calibration panels, and specialized vehicle cameras:
Technical Specifications
Rugged IP67 dustproof and waterproof build designed specifically for harsh mining and open-cabin forklift applications.
| Category | Specifications |
|---|---|
| Video Input | Up to 4 channels AHD (4CH) / 5 channels AHD (5CH) |
| Ingress Protection | IP67 Waterproof & Dustproof Enclosure |
| Physical Dimensions | 38 * 146 * 155 mm (Hand-sized dimension) |
| Storage Slot | Support 1 x SSD (up to 8TB) + 1 x SD card (up to 1TB) |
| AI Processing | Optional ADAS, DSM, BSD & 360 Around View integration |
| Power Protection | 8-second delay shutdown UPS protection (8V-36V input) |
Related Solutions
Forklift Safety Solution
Module Configurations
With 4G / 5G, GPS, WiFi modules optional, according to demands:
- GPS: For map tracking, locations and routes.
- 4G / 5G: For real-time remote monitoring.
- Wi-Fi: For automatic data offloads at depots.
Order Models
| Order Model | Description (Module Optional) |
|---|---|
| GFW | GPS+4G+WIFI |
| GFW (5G) | GPS+5G+WIFI |
| GFN | GPS+4G |
| GFN (5G) | GPS+5G |
| MV Secure Drive Max-16 IP67 | GPS+WIFI |
| GNN | GPS |
| NNN | Recording Only |
Built for Any Fleet
Proven performance across diverse transport sectors.
City Transit Buses
Enhance passenger safety and record liability events with full internal and external coverage.
Long-Haul Trucks
AI driver assistance reduces fatigue-related accidents on long routes and protects high-value cargo.
Specialized Tankers
Explosion-proof housing options and strict compliance recording for hazardous material transport.
